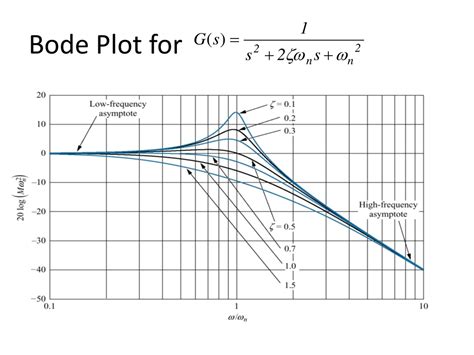

Bode plots. Use slope rules: ±20 dB/decade per pole/zero for magnitude plot. Express the ...

Bode plots. Use slope rules: ±20 dB/decade per pole/zero for magnitude plot. Express the transfer function in standard form to find poles and zeros. Tips to Solve Bode Plot Sketching: Identify the system's transfer function from the differential equation. Add up the plots. Mar 9, 2026 · The Bode Plot Transfer Function Calculator provides frequency domain analysis for linear time-invariant (LTI) systems by computing magnitude and phase responses across specified frequency ranges. Bode Plot The Bode plot of a transfer function G ^s h is shown in the figure below. Plot the phase and magnitude of each component. Learn how to draw Bode plots for magnitude and phase angle using transfer functions. In many frequency domain applications, the phase response is relatively unimportant and the magnitude response of the Bode plot may be all that is required. Henrik Wayne Bode while he was working for Bell Labs in the 1930s. Start magnitude Explore Bode plots in electrical engineering, focusing on transfer functions with real and complex roots, including magnitude and phase characteristics. Jul 23, 2025 · Two graphs, the Bode phase plot (which expresses the phase shift in degrees) and the Bode magnitude plot (which expresses the magnitude in decibels), are used to map the frequency response of the system. Learn how to draw Bode plots using asymptotic approximations, rules, and examples. They are most used to analyze the stability of control systems, for example when designing and analyzing power supply feedback loops. 1 day ago · Sketch the Bode plots (both gain and phase) for the following open-loop transfer functions: GH = s + 3 / s (s + 10) b. Often it is neccesary to access this frequency response data directly, which is accomplished easily using the following commands: For the design of control systems, any of the three types of plots may be used to infer closed-loop stability and stability margins from the open-loop frequency response. Our Approach is to Decompose G(s) into simpler pieces. Calculate phase shifts: ±90° per pole/zero, summing contributions. For the system shown below, determine range of K for stability using Bode plots. Bode plots were originally devised by Dr. Determine the gain margin and phase margin of the system. The gain _20 log G ^s h i is 32 dB and - 8 dB 320 19 1MB Read more. It typically consists of two plots: one for magnitude and one for phase, allowing users to analyze system behavior easily and make informed decisions. Findgain margin, phase margin, zero dB frequency (gain crossover), and 180deg frequency (phase crossover) for K=10000. Feb 24, 2012 · Bode Plot Definition: A Bode plot is a graphical representation that shows how the gain (magnitude) and phase of a system respond over a range of frequencies. Determine corner (break) frequencies from pole and zero locations. See examples, definitions, and techniques for different types of poles and zeros. Learn how to sketch the log magnitude and phase of a transfer function using Bode diagrams. For the design of control systems, any of the three types of plots may be used to infer closed-loop stability and stability margins from the open-loop frequency response. A Bode plot is a graph of the magnitude and phase of a system's frequency response, used in electrical engineering and control theory. A bode plot template is a graphical representation used in control systems and signal processing to display the frequency response of a system. Follow the steps to simplify, plot and interpret the frequency response of a system. The Bode plot of a system, , shows the magnitude, (in dB), and phase (degrees) over a range of fregencies. dsfj kvy iyje cuheeptp vclgjlyb pddc ehhotjb qjgeyt qxuqku zqq
